Fire Clay & High Alumina Bricks
We manufacture and export Fire Clay & High Alumina
Bricks. Alumina is an excellent engineering ceramic, offering
excellent electrical insulation properties together with high hardness
and good wear resistance but relatively low strength and fracture
toughness. It is also an electrically insulating material, with a high
electrical resistivity, increasing with purity.
| Product |
Al2O3
% min |
Fe2O3
% max |
PCE O.C. |
B.D Gm/cc min |
AP
% max. |
CCS Kg/cm2 |
R.U.L Ta°C min |
PLC
% max
AT/ 2 hrs |
Characteristics & Uses |
| SKG-30 |
30 |
2.5 |
30 |
2.0 |
25 |
200 |
1300 |
1350±1.0 |
General purpose medium heat duty bricks |
| SKG-40 |
40 |
2.5 |
32 |
2.05 |
25 |
200 |
1400 |
1400±1.0 |
General purpose high heat duty bricks |
| SKG-HG |
36 |
2.5 |
31 |
2.0 |
24 |
200 |
1400 |
1400±0.5 |
Fireclay blocks / bricks for glass melting furnace |
| SKG-42D |
43 |
2.0 |
32 |
2.25 |
19 |
400 |
1430 |
1450±0.5 |
General purpose coke oven, blast furnace |
| SKG-45 |
45 |
2.5 |
34 |
2.25 |
23 |
300 |
1450 |
1450±1.0 |
Super duty brick for general purpose |
| SKG-45D |
45 |
1.5 |
33 |
2.3 |
20 |
450 |
1470 |
1480±0.5 |
General purpose coke oven, blast furnace |
| SKG-50B |
50 |
2.5 |
35 |
2.3 |
22 |
350 |
1430 |
1450±1.0 |
Suitable for burning zone of cement rotary kiln,
ladle lining |
| SKG-60B |
60 |
3.0 |
36 |
2.5 |
23 |
350 |
1430 |
1600±1.0 |
Suitable for burning zone of cement rotary kiln,
ladle lining |
| SKG-62D |
62 |
1.2 |
- |
2.55 |
16 |
650 |
1580 |
1600±0.3 |
Blast furnace, coke oven, calcination & ceramic
industry |
| SKG-70B |
70 |
3.0 |
36 |
2.65 |
23 |
400 |
1470 |
1600±0.3 |
Suitable for burning zone of cement rotary kiln,
ladle lining |
| SKG-70L |
70 |
2.5 |
36 |
2.65 |
22 |
450 |
1450 |
1600±0.3 |
Suitable for burning zone of cement rotary kiln,
ladle lining |
| SKG-70SD |
70 |
1.5 |
37 |
2.65 |
22 |
450 |
1550 |
1600±0.5 |
Dense, suitable for reducing atmosphere of rotary
kiln and glass industries |
| SKG-80B |
80 |
3.5 |
36 |
2.75 |
23 |
400 |
1500 |
1600±1.0 |
Special application in refineries petro-chemicals
etc. |
| SKG-80SD |
80 |
1.6 |
37 |
2.75 |
19 |
700 |
1580 |
1600±1.0 |
Special application in refineries petro-chemicals,
steel ladles etc. |
| SKG-SMT |
56 |
1.5 |
36 |
2.35 |
21 |
450 |
1500 |
1500±0.5 |
For glass tank furnace, blast furnace, stove
checkers |
| SKG-90X |
90 |
1.0 |
- |
3.0 |
16 |
900 |
1720 |
1700±0.1 |
Blast furnace hearth |
- The technical data pertains to machine pressed standard bricks in
compliance with the testing standard. These data are typical
approximate guide value. Not to be construed as a binding
specification.
- Size tolerance ±1.% or 1.5mm whichever is greater.
- Bricks with properties of higher values available where
applications require the same.
Acid Resistant Bricks
We manufacture Acid Resistant Bricks, which are
brown/Grey in colour for IS-4860 and white in colour for IS-4457
standard. The colour of the bricks does not have impact on the
performance of the bricks. These bricks have good density and low
water absorption and low porosity. Very high cold crushing strength,
High resistance to strong acids (except hydroflouric acid) and partial
resistance to alkalies are the important technical parameters of these
bricks. These bricks are used in various industrial applications like
Chemical Storage Tanks, Absorption towers, Process Tanks, Flooring,
vessels, Chimney lining etc. in Chemical, Dyes and Intermediates,
Alkalies, Fertilizers, Petrochemicals, Paper, Power and Steel Plants,
and many more.
| Product |
Chemical |
Physical |
SiO2
% |
Al2O3
% |
Fe2O3 % |
TiO2
% |
CaO+MgO % |
Na2O+K2O % |
Water Absorbtion % |
C.C.S kg/cm2 |
Flexural strength kg/cm2 |
Acid resistance % loss in wt. |
| SKG-AR 230 x 115 x 75mm |
68.2 |
24 |
1.8 |
2.1 |
0.5 |
3.4 |
3 |
730 |
125 |
0.80 |
| SKG-AR 230 x 115 x 38mm |
68.2 |
24 |
1.8 |
2.1 |
0.5 |
3.4 |
3 |
730 |
125 |
0.75 |
- Sodium silicate base powder & solution
- Potassium silicate base powder & solution
- Furan resin powder & syrup
- Bitumin 90/15 grade & primer
- Mastik powder (A.R)
Magnesite Bricks
We manufacture and supply excellent quality Magnesite
Bricks. This exclusive range of Magnesite Bricks is manufactured under
the strict supervision of experts, to avoid any defect. These bricks
are widely used in various industries. Our quality-tested Magnesite
Bricks are widely acknowledged by the clients owing to their superior
properties and efficient performance. These Magnesite Bricks are
specially designed in order to meet various requirements of the
clients. Our clients can avail our high quality range of Magnesite
Bricks at affordable rates.
| PRODUCT |
Mgo
% min. |
Fe2O3
% |
SiO2
% max. |
A. P.
% min. |
CCS. Kg/Cm² max. |
R.U.L. Ta°C |
PLC at 1600°C /2hrs. |
Application |
| SKG-MGN |
85 |
- |
6.5 |
22 |
400 |
1560 |
0.5 |
For steel plant, General purpose use |
| SKG-MGT |
87 |
- |
6 |
22 |
450 |
1600 |
0.5 |
For Steel Plant, BOF/EAF, Copper Refineries |
| SKG-MGD |
92 |
0.5 |
3 |
16 |
1600 |
1620 |
0.5 |
Low Iron Dense Brick, Generator, Chemical Industry and other
applications |
- The technical data pertains to machine pressed standard bricks in
compliance with the testing standard. These data are typical
approximate guide value. Not to be construed as a binding
specification.
- Size tolerance ±1.% or 1.5mm whichever is greater.
- Bricks with properties of higher values available where
applications require the same.

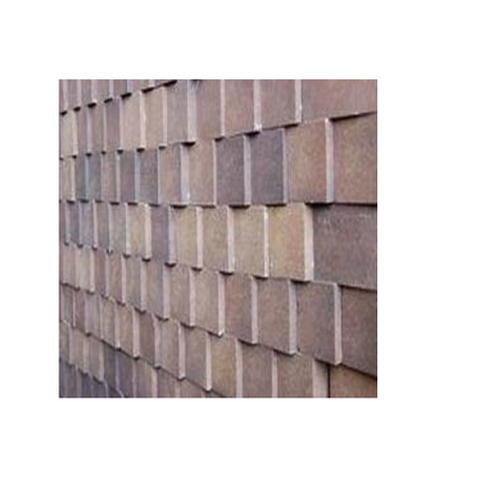

Magnesite Carbon Bricks
We offer high quality Magnesia carbon brick that is a
superior product. It is made from quality fused macro-crystalline
magnesia, graphite and some additives by high-pressure shaping. With
good resistance to thermal shock, corrosion, erosion and oxidation, it
is a kind of ideal material for the working lining of the converter
and EAF as well as slag line region of ladles.
| Product |
MGO % (INFM/DBM) used |
F C % min |
BD
Gm/cc min |
A.P.
% max. |
CCS kg/cm2 min |
A.T.
% max coked a 1000°C |
MOR kg/Cm3 RT |
HMOR |
Application |
| SKG-MAGCARB 9712 |
97* |
12 |
2.90 |
5.5 |
400 |
13 |
120 |
80-100 |
BOF Lining, Steel Ladle, Slag area & EAF hot spot |
| SKG-MAGCARB 9208 |
92 |
8 |
2.85 |
7 |
350 |
14 |
90 |
50-70 |
Steel Ladle, Metal Zone & Bottom |
- The technical data pertains to machine pressed standard bricks in
compliance with the testing standard. These data are typical
approximate guide value. Not to be construed as a binding
specification.
- Size tolerance ±1.% or 1.5mm whichever is greater.
- Bricks with properties of higher values available where
applications require the same.
Chrome Magnesite Bricks
We are involved in manufacturing and supplying of Chrome
Magnesite Bricks. These bricks are mainly used as chequer bricks of
the regeneration zone. These bricks find use in various applications
like rotatory kiln, furnaces and open hearth. They have high
anti-erosion ability, and optimum resistance.
| PRODUCT |
Mgo
% min |
CrO3
% max. |
SiO2
% max. |
A. P.
% max. |
CCS.
Kg/Cm2 min. |
R.U.L. TA°C max. |
PLC at 1600°C /2hrs. |
Application |
| SKG-CHM (D) |
50 |
30 |
- |
22 |
400 |
1650 |
0.6 |
For high temp application such as EAF |
| SKG-CHM |
40 |
18 |
- |
24 |
300 |
1550 |
0.5 |
For general application |
| SKG-DBMC |
60 |
12 |
1 |
18 |
350 |
1720 |
0.5 |
AOD and VOD |
- The technical data pertains to machine pressed standard bricks in
compliance with the testing standard. These data are typical
approximate guide value. Not to be construed as a binding
specification.
- Size tolerance ±1.% or 1.5mm whichever is greater.
- Bricks with properties of higher values available where
applications require the same.
Insulation Bricks
We offer our valuable clients a comprehensive collection
of Insulation Bricks. Low weight, high solidity and low heat
conductivity are the special features of insulation bricks that make
them matchless in all perspectives. Light Weight Fire Insulating
Bricks are being used in all types of furnaces, boilers etc. for heat
insulation. We are capable of satisfying bulk requirements of our
valued customers in a very economical way.
Product Details :
- Material : Alumina Block
- Size (Inches) : 9 In. X 4 In. X 3 In.
- Color : Red
- Shape : Brick
- For Use in : Side Walls, Floor
- Application : Industrial Furnaces
| Product |
Al2O3 % min |
Fe2O3 % max |
Bulk Density |
A.P. % min |
C.C.S Kg/Cm2 max |
Thermal Conductivity at 600°C mean temp W/MK |
Refractoriness Orton |
Service Temp. |
PCE |
| Maithan-LW |
30 |
2.5 |
1.1 |
55 |
30 |
0.45 |
30 |
1200 |
- |
| Maithan-CFI |
30 |
2.5 |
0.8 |
65 |
15 |
0.35 |
30 |
1250 |
- |
| Maithan-HFI |
30 |
2.5 |
0.9 |
60 |
20 |
0.40 |
30 |
1300 |
- |
| Maithan-HFK |
40 |
2.5 |
1.1 |
55 |
40 |
0.50 |
32 |
1400 |
- |
| Maithan-P100 |
40 |
1.5 |
1.0 |
60 |
40 |
0.40 |
32 |
1450 |
- |
| SKG-CFI |
28 |
2.0 |
0.8 |
70 |
15 |
0.19 |
28 |
1100 |
- |
| SKG-HFI |
35 |
2.0 |
1.1 |
60 |
40 |
0.30 |
30 |
1300 |
- |
| SKG-MICA 500 |
- |
- |
0.5 |
80 |
7 |
0.14 |
- |
1000 |
- |
| SKG-MICA 600 |
- |
- |
0.65 |
75 |
9 |
0.16 |
- |
1050 |
- |
| ACINS-110 |
20 |
2.0 |
1.0 |
60 |
25 |
0.25 |
- |
1100 |
20 |
| ACINS-135 |
30 |
2.0 |
1.1 |
60 |
25 |
0.30 |
- |
1350 |
29 |
| ACINS-140 |
40 |
2.0 |
1.0 |
60 |
25 |
0.30 |
- |
1400 |
30 |
| Porosint-1550 |
60 |
1.0 |
1.1 |
- |
30 |
0.40 |
- |
1550 |
37 |
| Porosint-1650 |
70 |
0.8 |
1.2 |
- |
40 |
0.45 |
- |
1650 |
37 |
- The technical data pertains to machine pressed standard bricks in
compliance with the testing standard. These data are typical
approximate guide value. Not to be construed as a binding
specification.
- Size tolerance ±1.% or 1.5mm whichever is greater.
- Bricks with properties of higher values available where
applications require the same.

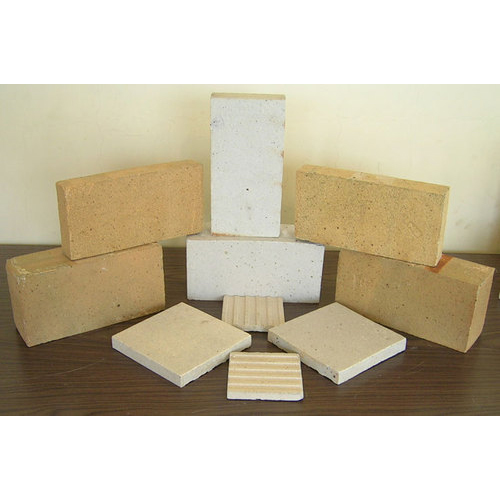

Acid Proof Bricks
Team of our dexterous professionals and the use of advance technology have enabled us to process a quality product in the form of Ceramic Acid Proof Bricks. Our dedicated professionals have put in their hard work to process our product and use of the best quality raw material has made it outstanding among the rest. Owing to the features like durability, crack-proof our product is praised by the client and tops their priority.
Features :
- Sturdiness
- Moisture absorbing capacity
- Flawless Finish

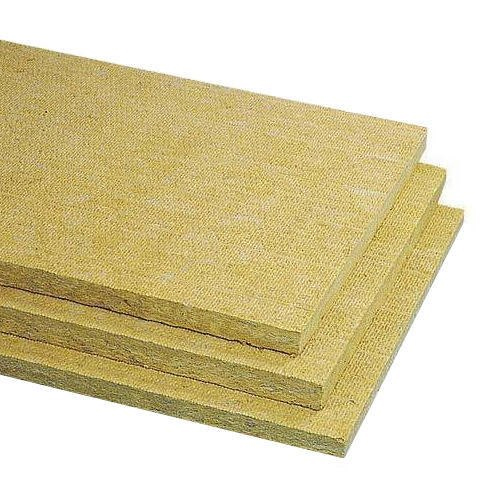

Rockwool Slab
Having a definite quality management system, we are regarded as the noteworthy trader and supplier of an extensive gamut of LRB Rockwool Slabs. The offered product is used for packing food items in residential and food processing industries. This product provide hygienic and air resistance packaging options to food items. Moreover, it also provides safe packaging option to fragile objects in different packaging industries. We offer this product to our clients at affordable rate.
Features :
- Easy to dispose
- Safe to use
- Glossy finish

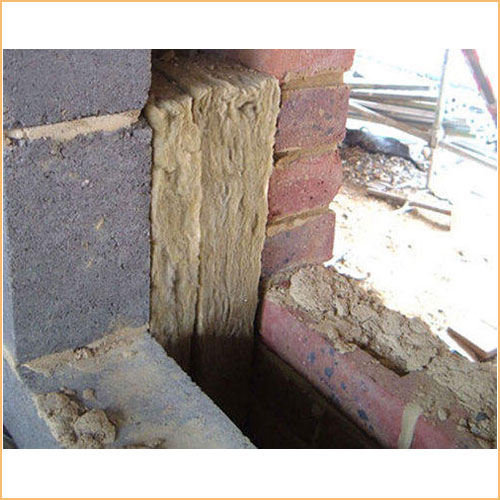

Hot Insulation Material
We are authorised distributor of Hindalco industries ltd. We are also sale polysurlyn coils for insulation cladding for EIL projects.Please fill free to contact us.
Features :
- Easy to dispose
- Safe to use
- Glossy finish

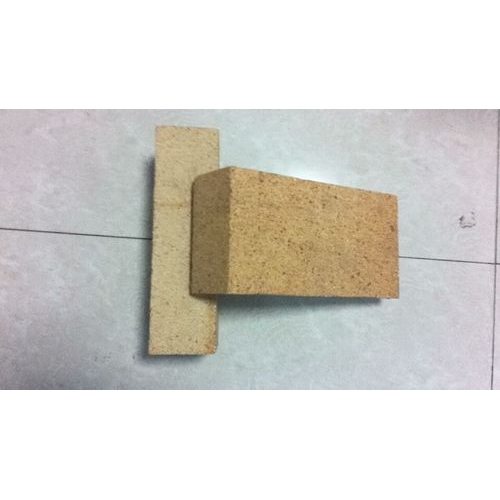

Boiler Refractory Brick
Our exhaustive range of Refractory Brick is manufactured using high grade refractory ceramic material at vendor's end. These refractory bricks can withstand weather changes, are lightweight and have a longer life. Hence, these find extensive usage in lining furnaces, kilns, fireboxes, and fireplaces. Their durability factor makes them ideal for furnaces construction
Features :
- IS-6, IS-8 Bricks,
- 60%, 70% to 99% Alumina Bricks,
- Sillimanite Bricks/Blocks
- Anchor and roof Bricks
- G.T. Blocks
- Mullite Bricks
- Magnesite Bricks
Product Details :
- Resistance Durability : Fire Resistant, Heat Resistant, Water Resistant

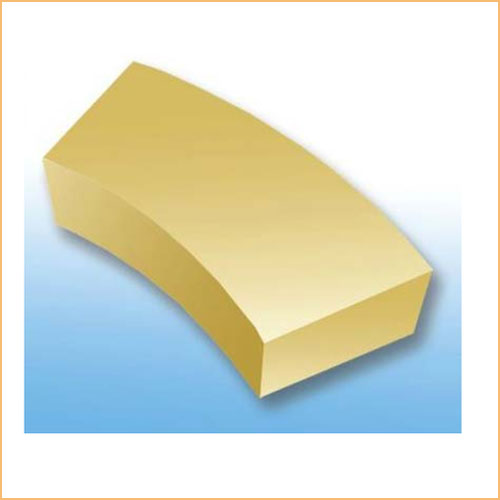

Cupola Bricks
We are offering high-quality Cupola Bricks that are used in various furnaces. These cupola bricks are manufactured by us using premium quality alumina and are highly temperature resistant. We provide cupola bricks to the clients as per their required quantity. The price of the cupola bricks differs as per the quantity supplied.
Features :
- High strength
- Easy to lay
- High-temperature resistance
- Resistant to abrasion
Product Details :
| Grade | Technical Grade | | Size (Inches) | 9 In. X 4 In. X 3 In. | | For Use in | Side Walls, Partition Walls, Roof, Floor | | Brick/Block Color | Yellow | | Shape | Bricks | | Brand | SKG |
Shoulder And Hanger Bricks
We are offering high-quality Shoulder And Hanger Bricks that are used in various Side Walls, Partition Walls, Roof, Floor.
Product Details :
| For Use in | Side Walls, Partition Walls, Roof, Floor | | Brand | SKG | | Resistance Durability | Fire Resistant, Heat Resistant, Water Resistant | | Condition | New |
| Product | Al2O3
% min | Fe2O3
% max | PCE O.C. | B.D
Gm/cc min | A.P
% max. | CCS Kg/Cm² | RUL
Ta°C min | PLC
% Max
AT/2 hrs | Characteristics & Uses | | SKG-40 | 40 | 2.2 | 32 | 2.1 | 23 | 250 | 1400 | 1400±1.0 | General purpose high heat duty brick | | SKG-50B | 50 | 2.5 | 35 | 2.3 | 22 | 350 | 1430 | 1450±1.0 | Suitable Re-heating Furnace | | SKG-70B | 70 | 3 | 36 | 2.65 | 23 | 400 | 1470 | 1600±0.3 | Suitable Re-heating Furnace |
|
 |
Profile
©
SK Gupta Private Limited, Mumbai. All Rights Reserved (Terms
of Use)
