Insulating Castables

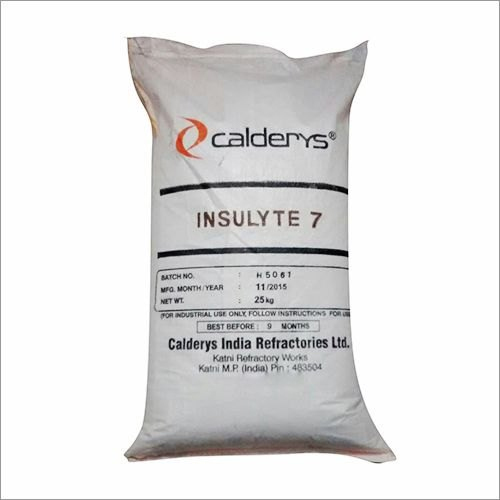

Insulyte 7 Insulating Castable

We are involved in producing and supplying of high grade Insulyte 7 Low Density Insulating Castables. This product is best known for its high quality, reliability, weather resistivity, etc. This is widely used in metallurgy, building material and petrochemical industries.

Product Type	Insulyte 7
Nature of Bond	Hydraulic
Installation	Tamping
General Properties
Max. Service Temperature	1100° C
Maximum Grain Size	6 mm
Water Required For Casting	60.0 to 65.0%
Chemical Analysis %	Typical Value
Fe2O3	7.45
Physical Properties
Bulk density	g / cc
after drying at 110°C/24 hrs	0.84
CCS, kg/cm2 after drying at 110°C/24hrs	15.4
after heating at 1100°C/3 hrs	8.3
% retained on max, size	1.20
Thermal properties
Refractories, Orton / °C	12/1337
PLC%
after heating at 1100°C/3hrs	-0.8
Thermal Conductivity Kcal/m hr° C
At 500°C HF	0.18
Packaging	25 Kg bags
Storage life	9 months
Delivery state dry	dry

Insulyte 11 Medium Density Insulating Castable

We offer our clients an exclusive quality Insulyte 11 Medium Density Insulating Castable. This is extensively used in various industries like metallurgy, building material and petrochemical industries. Further, this product is highly acknowledged for its salient features including high quality, resistivity, etc.

Product Type	Insulyte 11
Nature of Bond	Hydraulic
Installation	Tamping
General Properties
Max. Service Temperature	1300° C
Maximum Grain Size	6 mm
Water Required For Casting	29- 34%
Chemical Analysis %	Typical Value
Fe2O3	3.35
Physical Properties
Bulk density	g / cc
after drying at 110°C/24 hrs	1.28
CCS, kg/cm2 after drying at 110°C/24hrs	40
after heating at 1100°C/3 hrs	30
after heating at 1300° C/3 hrs	50
% retained on max, size	1.40
Thermal properties
Refractories, Orton / °C	14/ 1398
PLC%
after heating at 1100°C/3 hrs	-0.19
after heating at 1300°C/3 hrs	+0.80
Thermal Conductivity
Kcal/m hr oC At 500 oC HF	0.325
Packaging	25 Kg bags
Storage life	9 months
Delivery state dry	dry

Insulyte 11 Li Medium Density Insulating Castable

We manufacture and supply high quality Insulyte 11 Li Medium Density Insulating Castable. These are generally used to form strong joints and are applied extensively in building material, metallurgy, and petrochemical industries. Our Castables are very cost effective.

Product Type	Insulyte 11 Li
Nature of Bond	Hydraulic
Installation	Tamping
General Properties
Max. Service Temperature	1350° C
Maximum Grain Size	6 mm
Water Required For Casting	30 - 35%
Chemical Analysis %	Typical Value
Fe2O3	1.60
Physical Properties
Bulk density	g / cc
after drying at 110°C/24 hrs	1.28
CCS, kg/cm2 after drying at 110°C/24hrs	53
after heating at 1100°C/3 hrs	35
after heating at 1300°C/3 hrs	55
% retained on max, size	1.40
Thermal properties
Refractoriness, Orton / °C	+ 14 / 1398
PLC%
after heating at 1100°C/3 hrs	-0.15
after heating at 1300°C/3 hrs	+0.75
Thermal Conductivity Kcal/m hr oC
At 500 oC HF	0.345
Packaging	25 Kg bags
Storage life	9 months
Delivery state dry	dry
